em #

Center
Wavelength

FWHM^a of Blocking
Region (Max)

Passbands
(T_avg > 90%)

Diameter

Thickness

Substrate

Transmission
Graph^b

OD
Graph^c

AOI
Graphs^d

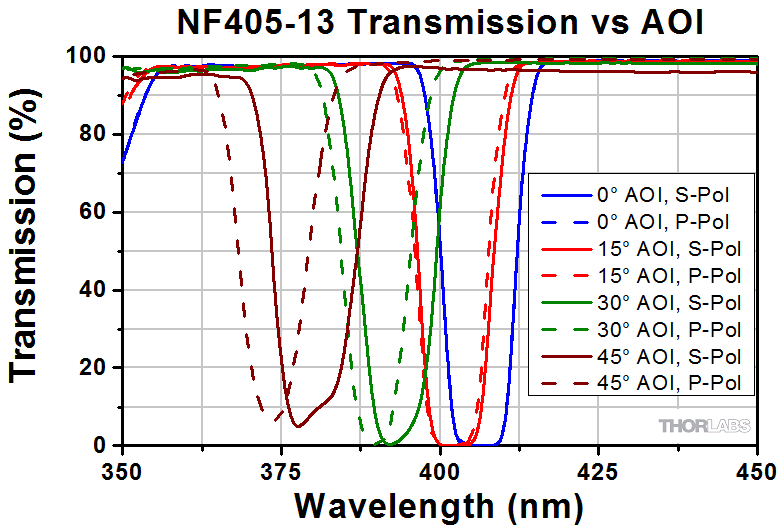

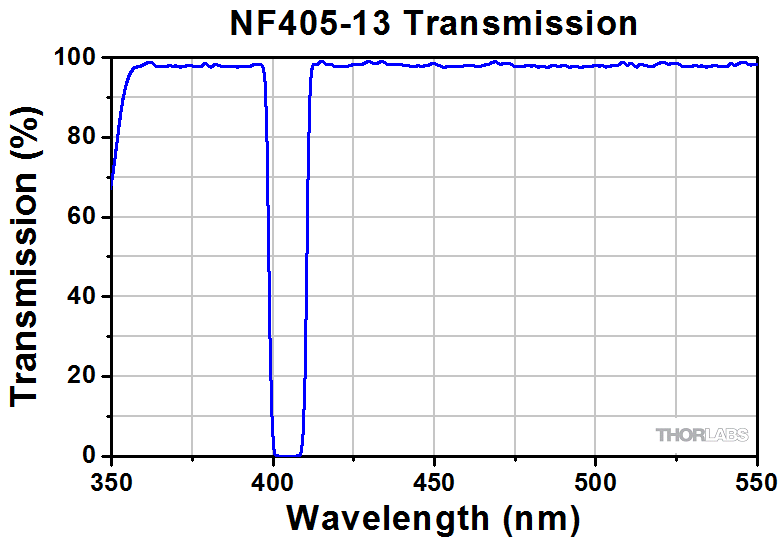

NF405-13

405 ± 2 nm

13 nm

360 - 390 nm
420 - 570 nm

25.0 mm

3.5 mm

Fused Silica

NF514-17

514 ± 2 nm

17 nm

400 - 496 nm
532 - 690 nm

25.0 mm

3.5 mm

Fused Silica

NF533-17

533 ± 2 nm

17 nm

400 - 517 nm
548 - 710 nm

25.0 mm

3.5 mm

Fused Silica

NF561-18

561 ± 2 nm

18 nm

425 - 542 nm
580 - 740 nm

25.0 mm

3.5 mm

Fused Silica

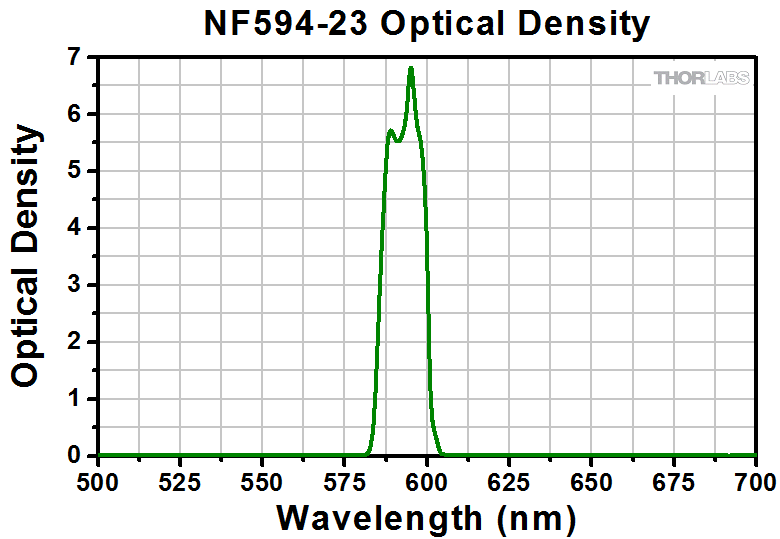

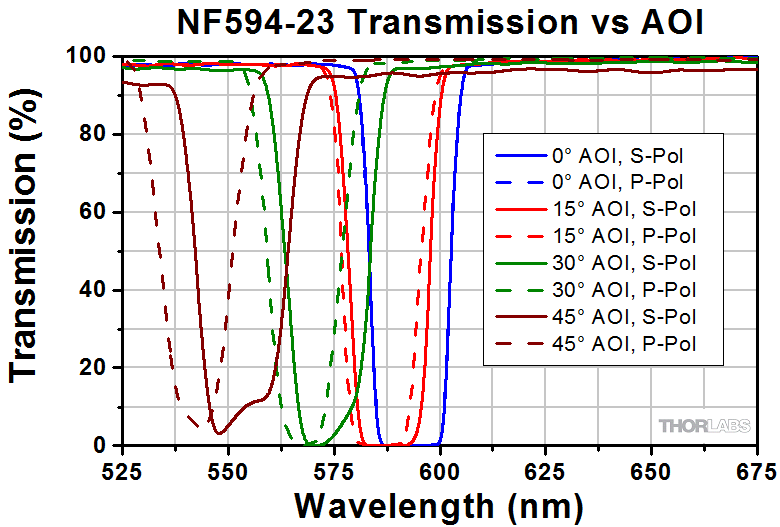

NF594-23

594 ± 2 nm

23 nm

440 - 572 nm
616 - 810 nm

25.0 mm

3.5 mm

Fused Silica

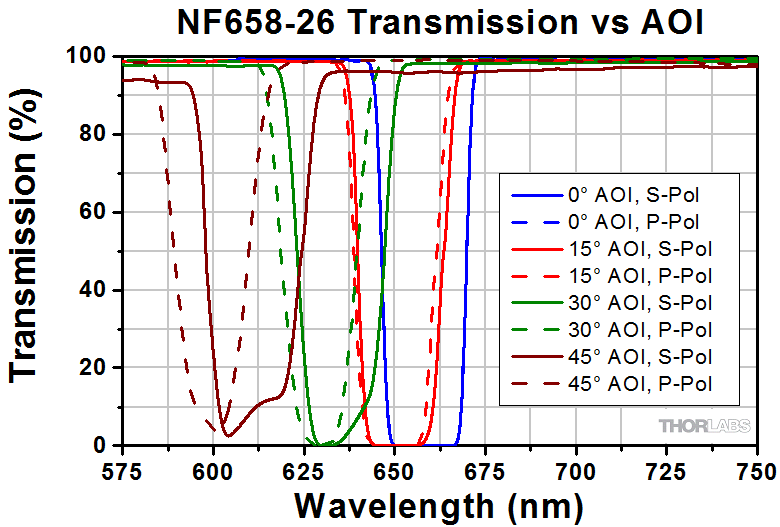

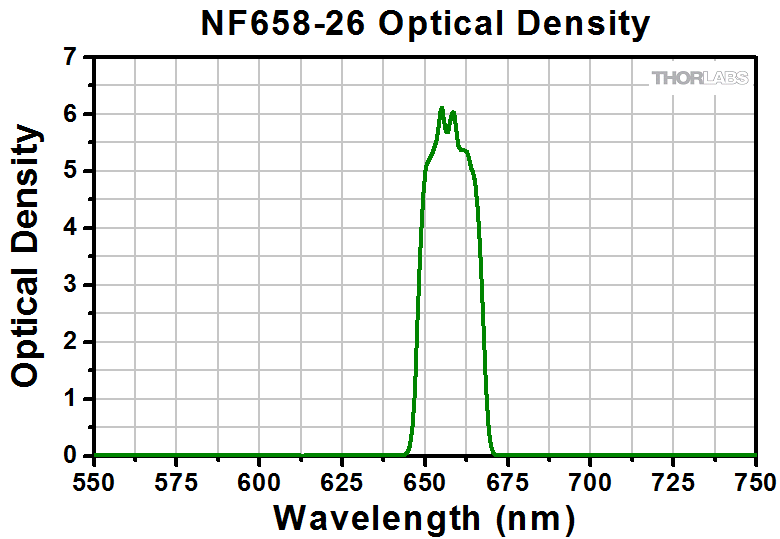

NF658-26

658 ± 2 nm

26 nm

500 - 634 nm
682 - 900 nm

25.0 mm

3.5 mm

Fused Silica

NF808-34

808 ± 2 nm

34 nm

610 - 778 nm
838 - 1060 nm

25.0 mm

3.5 mm

Fused Silica

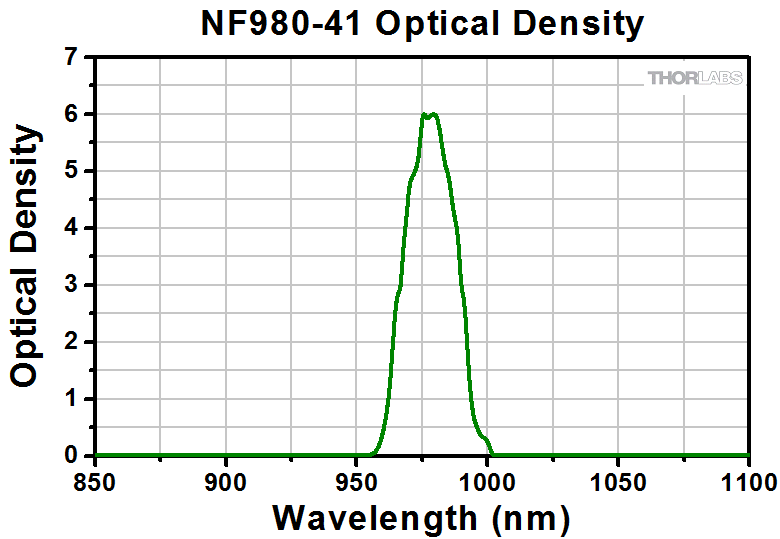

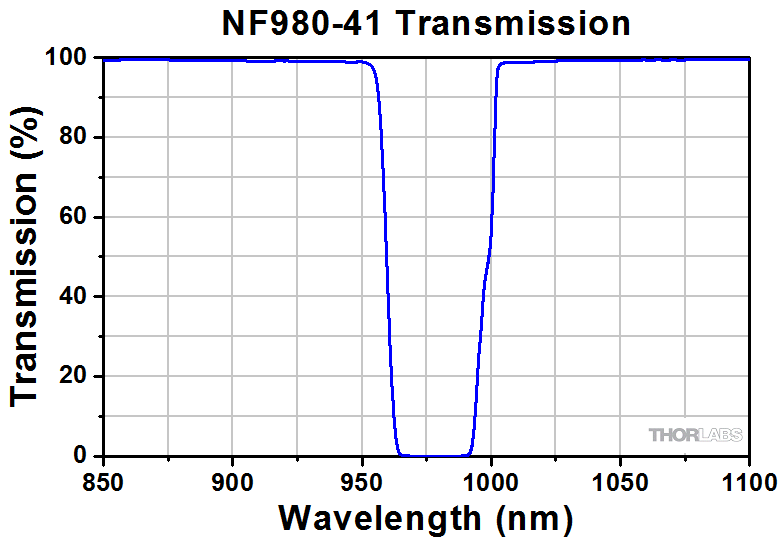

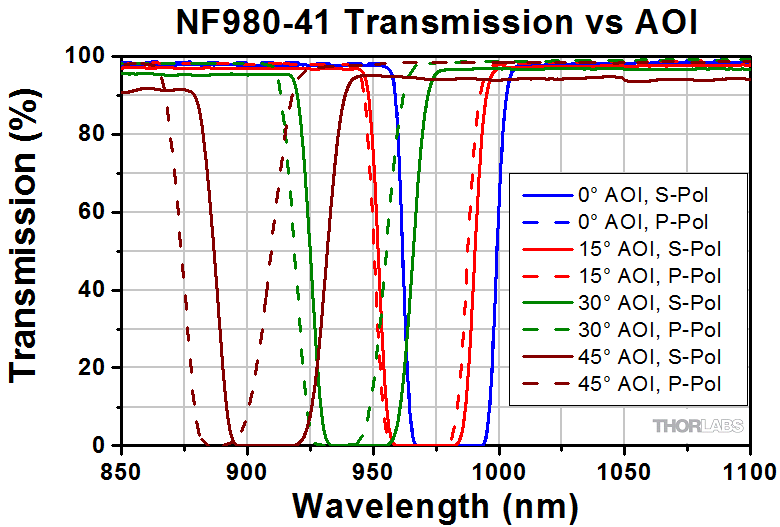

NF980-41

980 nm ± 2 nm

41 nm

700 - 948 nm
1012 - 1300 nm

25.0 mm

3.5 mm

Fused Silica
